Use

Used for AC 50Hz, rated voltage 1kV and below overhead power transmission and distribution lines, for transmitting and distributing electrical energy

Cable specifications

Number of cores: 1, 2, 4, 3+K

Conductor cross-sectional area: 10~300mm2

Special properties of cables

Flame retardant/oil resistant/UV resistant/heat-resistant

Rated operating temperature of conductor

PVC insulation should not exceed 70 ℃, XLPE insulation should not exceed 90 ℃

Allowable bending radius of cable

Cable outer diameter D ＜ 25mm should not be less than 4D, and D ≥ 25mm should not be less than 6D

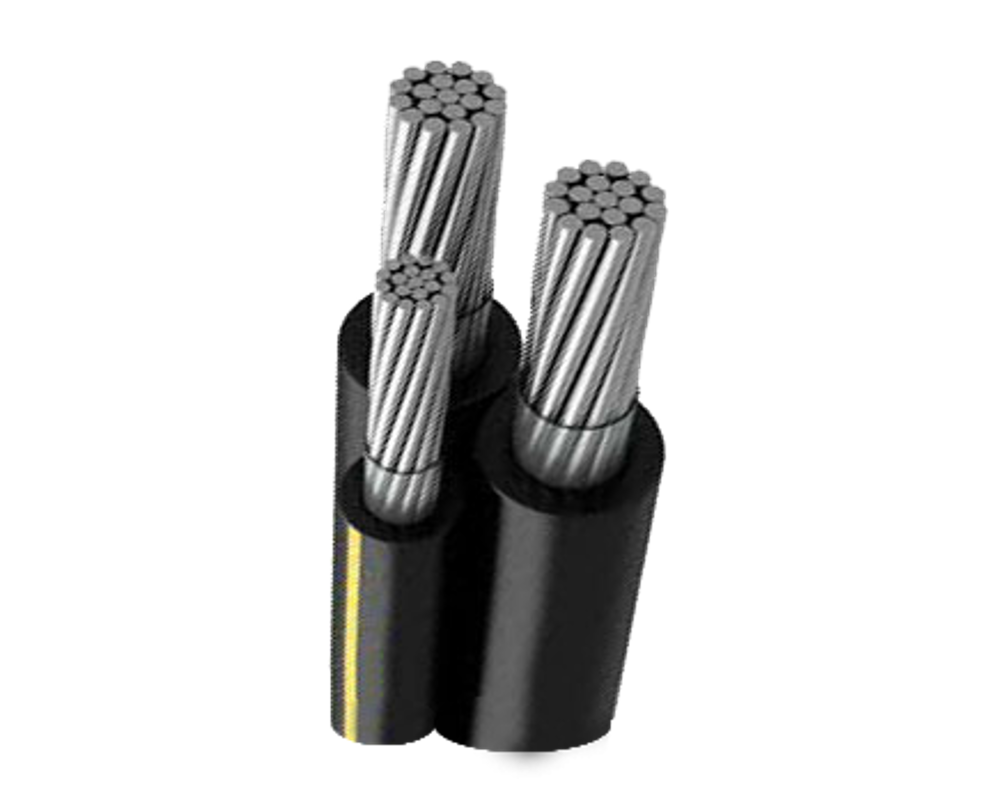

cable structure

The main structural components of the cable are: conductor and insulation layer

among which

The conductor materials are copper (CU), aluminum (AL), aluminum alloy (AA), and steel cored aluminum stranded wire (ACSR)

The insulation materials are: polyvinyl chloride (PVC), cross-linked polyethylene (XLPE), polyethylene (PE)

Typical structure of cable:

CU/AL/AA/ACSR+PVC/ XLPE /PE/ FR
