Cable Specifications

• Number of cores: 1, 3, 3+K
• Conductor cross‑sectional area: 10~300 mm²

Special Cable Properties

Flame‑retardant / Halogen‑free low‑smoke

Oil‑resistant / UV‑resistant / Heat‑resistant

Termite‑proof / Rodent‑proof / Waterproof

Rated Operating Temperature of Conductor

The maximum rated operating temperature of cable conductor is 90 °C.

Permissible Bending Radius of Cable

When cable outer diameter D ＜ 25 mm: not less than 4D

When D ≥ 25 mm: not less than 6D

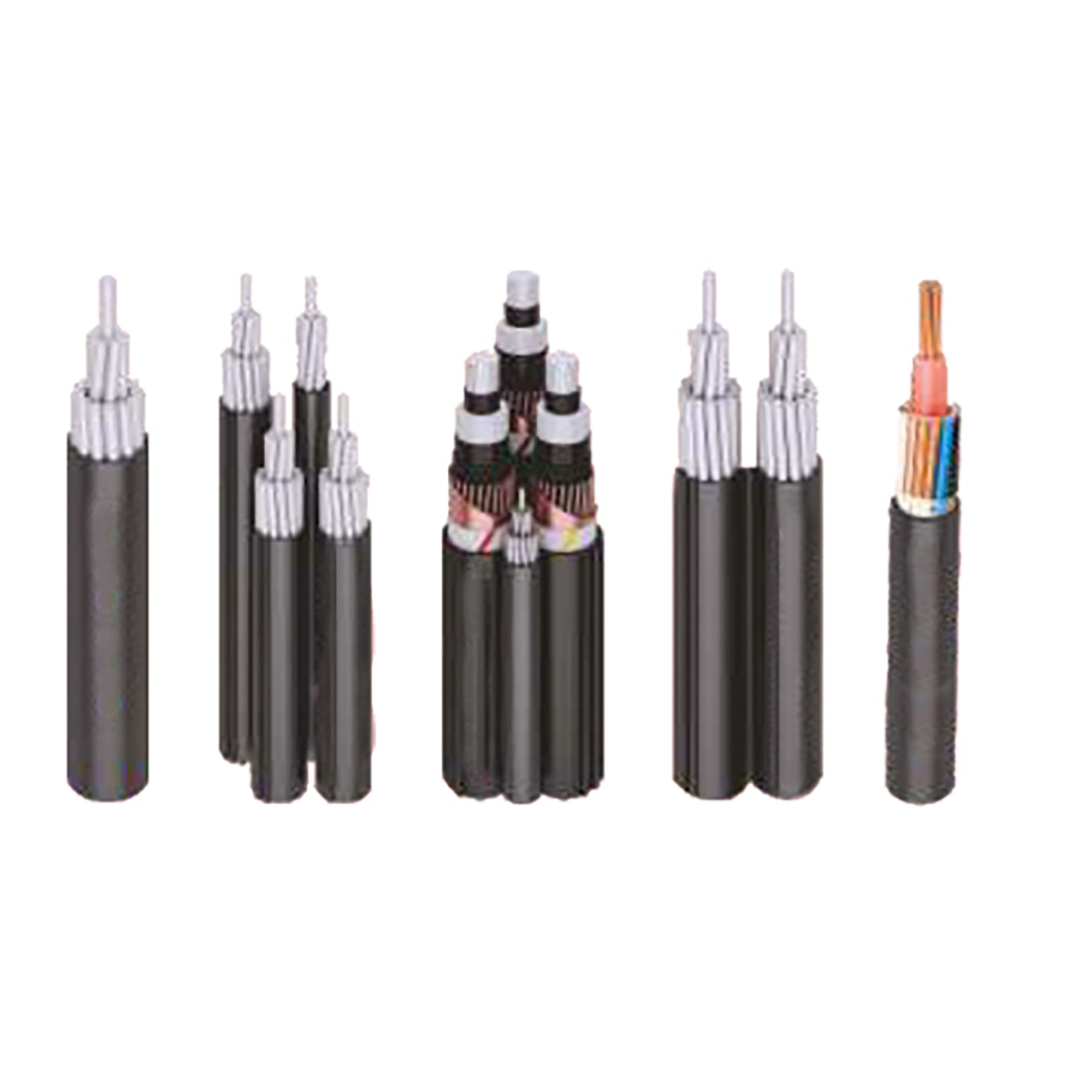

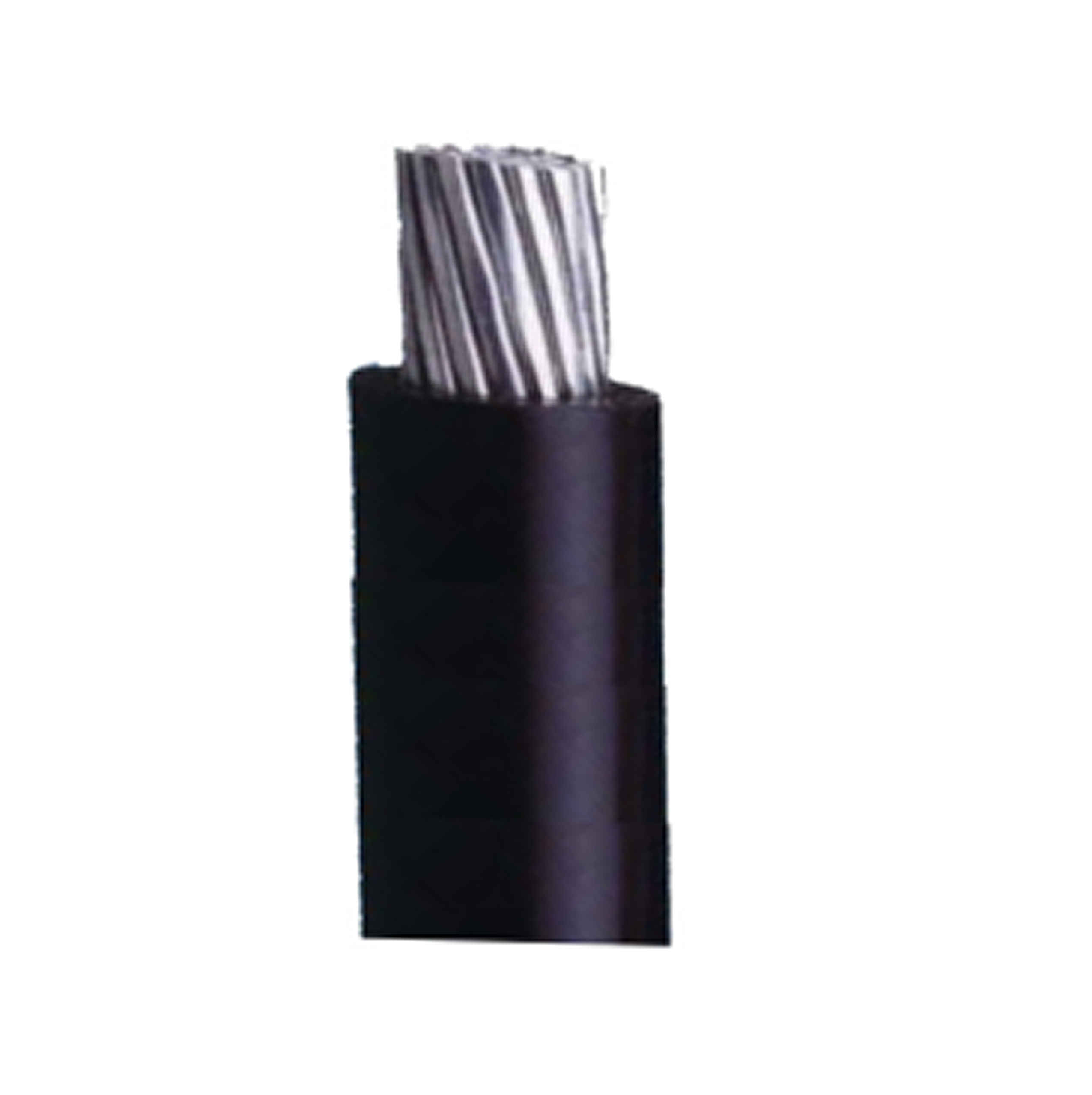

Cable Construction

Main components: Conductor, insulation layer and shielding layer.

• Conductor material: Copper (CU), Aluminum (AL) or Aluminum‑alloy (AA)
• Insulation material: Cross‑linked polyethylene (XLPE), Polyethylene (PE)
• Shielding material: Semi‑conductive polymer

Typical Cable Construction

CU/AL/AA + XLPE / PE / FR
