Use

Used for signal transmission, control, and measurement systems in electrical instruments and power distribution devices with an AC rated voltage of 450/750V and below in industrial and mining enterprises such as metallurgy, electric power, and petrochemical industries.

Cable specifications

l Number of cores: 2~61

l Conductor cross-sectional area: 0.5~10mm2

l Voltage level: 450/750V

Control cables include, but are not limited to, the following products

l PVC insulated control cable (CU/PVC/PVC/FR)

l PVC insulated copper wire shielded control cable (CU/PVC/CWS/PVC/FR)

l PVC insulated copper tape shielded control cable (CU/PVC/CTS/PVC/FR)

l PVC insulated steel tape armored control cable (CU/PVC/STA/PVC/FR)

l PVC insulated copper tape shielded steel tape armored control cable (CU/PVC/CWS /STA/PVC/FR)

l PVC insulated steel wire armored control cable (CU/PVC/SWA/PVC/FR)

l PVC insulated control flexible cable (CU/PVC/PVC/FR/FLEX)

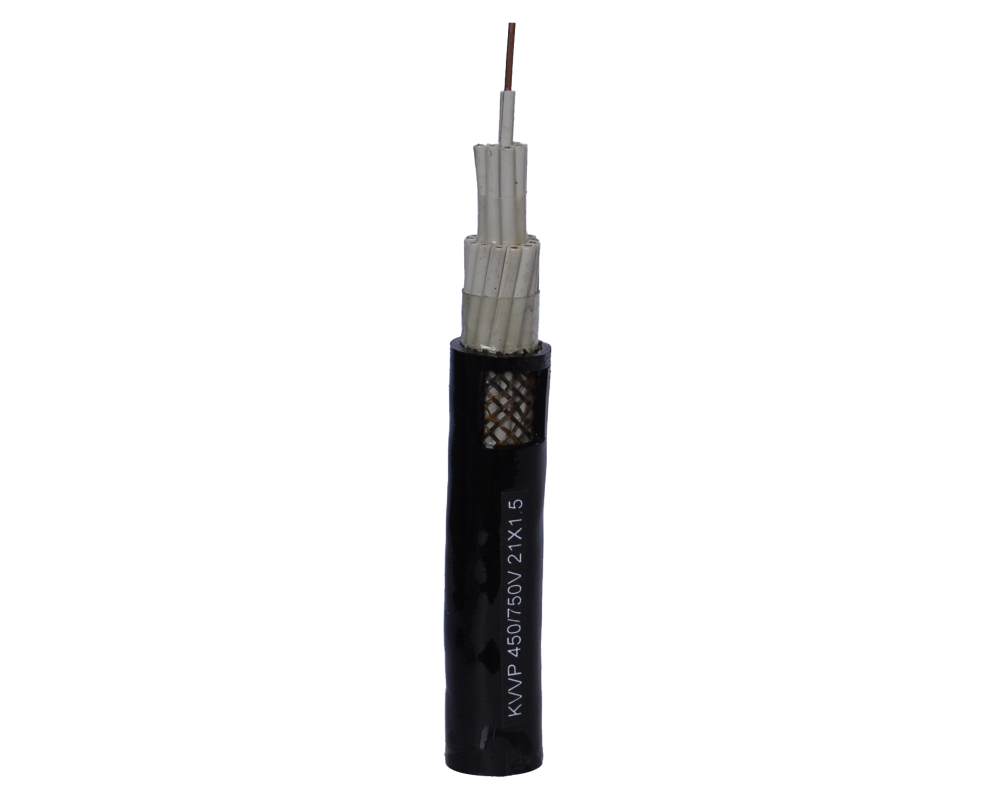

l PVC insulated control copper wire shielded flexible cable (CU/PVC/CWS/PVC/FR/FLEX)

l Cross-linked polyethylene insulated control cable (CU/XLPE/PVC/LSFH/FR)

l Cross-linked polyethylene insulated copper wire shielded control cable (CU/XLPE/CWS/PVC/LSFH/FR)

l Cross-linked polyethylene insulated copper tape shielded control cable (CU/XLPE/CTS/PVC/LSFH/FR)

l Cross-linked polyethylene insulated steel tape armored control cable (CU/XLPE/STA/PVC/LSFH/FR)

l Cross-linked polyethylene insulated copper tape shielded steel tape armored control cable (CU/XLPE/CWS/STA/PVC/LSFH/FR)

l Cross-linked polyethylene insulated steel wire armored control cable (CU/XLPE/SWA/PVC/LSFH/FR)

Special properties of cables

Flame retardant/fire-resistant/halogen-free low smoke flame retardant/halogen-free low smoke flame retardant and fire-resistant

Oil-resistant / UV-resistant / Low temperature-resistant / High temperature-resistant

Anti-termite/anti-rodent

Rated operating temperature of conductor

The maximum rated operating temperature of the conductor in PVC insulated cables is 70℃

The maximum rated operating temperature of the conductor in XLPE insulated cables is 90℃

Allowable bending radius of cable

The flexible cable should be no less than 6 times the cable's outer diameter

The length of PVC insulated unarmored cable should not be less than 6 times the cable's outer diameter

The XLPE insulated unarmored cable should be no less than 8 times the cable's outer diameter

The thickness of armored cables and metal tape shielded cables should not be less than 12 times the outer diameter of the cable

cable structure

The main structural components of a cable are: conductor, insulation layer, shielding layer, and protective layer

among which

The conductor material is copper (Cu)

Insulating materials include: polyvinyl chloride (PVC) and cross-linked polyethylene (XLPE)

The shielding layer materials are: copper wire (CW) and copper tape (CT)

The sheathing materials are: polyvinyl chloride (PVC), low smoke zero halogen polyolefin (LSFH), galvanized steel tape (ST), and galvanized steel wire (SW)

Typical structure of cable:

CU+PVC +PVC/FR

CU+PVC +CTS/CWS+PVC/FR

CU+PVC +STA/SWA+PVC/FR

CU+PVC +CTS/CWS+STA/SWA +PVC/FR

CU+XLPE +PVC/LSFH/FR

CU+XLPE +CTS/CWS+PVC/LSFH /FR

CU+XLPE+STA/SWA+PVC/LSFH /FR

CU+XLPE+CTS/CWS+STA/SWA+PVC/LSFH /FR
